760241217 | KJ10G-A.WHT | CommScope Cat6A RJ45 Modular Jack

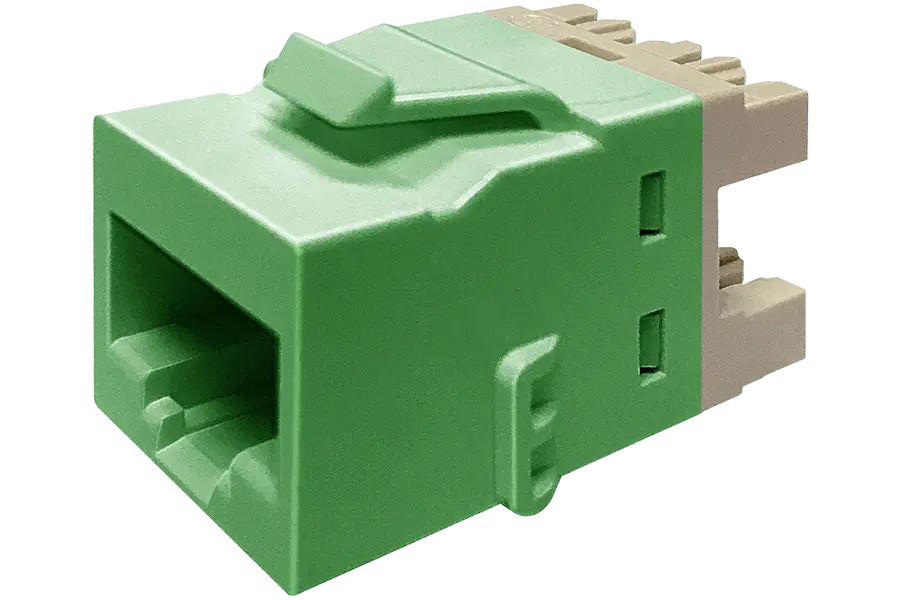

NETCONNECT KJ Series Keystone Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, green

Brand : Commscope

Model : 760241214

Enquiry Us Contact Now

Features and Benefits

• Color is more prominently visible across the body of the jack
• Allows for all jack variants to be terminated with the SL termination tool
• Lacing fixture of the SL termination tool is used to establish the cable termination

Specifications

Product Classification

• Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
• Portfolio : NETCONNECT®
• Product Type : Modular jack
• Product Series : KJ Series
• General Specifications
• ANSI/TIA Category : 6A
• Cable Type : Unshielded
• Color : Green
• Conductor Type : Solid | Stranded
• Mounting : Keystone faceplates and panels
• Outlet Type : Standard
• Panel Cutout, recommended : 14.78 x 19.30 mm (0.58 x 0.76 in)
• Termination Tool : SL Termination tool
• Termination Type : IDC
• Transmission Standards : ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA
• Wiring : T568A | T568B

Dimensions

• Height : 16.13 mm | 0.635 in
• Width : 16.48 mm | 0.649 in
• Depth : 30.48 mm | 1.2 in
• Compatible Cable Diameter, maximum : 7.24 mm | 0.285 in
• Compatible Insulated Conductor Diameter, maximum : 1.45 mm | 0.057 in
• Contact Plating Thickness : 1.27 µm
• Panel Thickness, recommended : 1.6 mm | 0.063 in
• Compatible Conductor Gauge, solid : 22 AWG | 24 AWG
• Compatible Conductor Gauge, stranded : 24 AWG | 26 AWG

Electrical Specifications

• Remote Powering : Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Material Specifications

• Contact Base Material : Beryllium copper
• Contact Plating Material : Gold
• Material Type : Copper alloy | High-impact, flame retardant, thermoplastic | Polycarbonate

Environmental Specifications

• Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
• Storage Temperature : -40 °C to +70 °C (-40 °F to +158 °F)
• Flammability Rating : UL 94 V-0

Packaging and Weights

• Packaging quantity : 1
• Packaging Type : Bag

Regulatory Compliance/Certifications

• ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
