1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
Enquiry Us Contact NowCost-effective Small Form-factor Pluggable (SFP) transceivers for Gigabit Ethernet applications

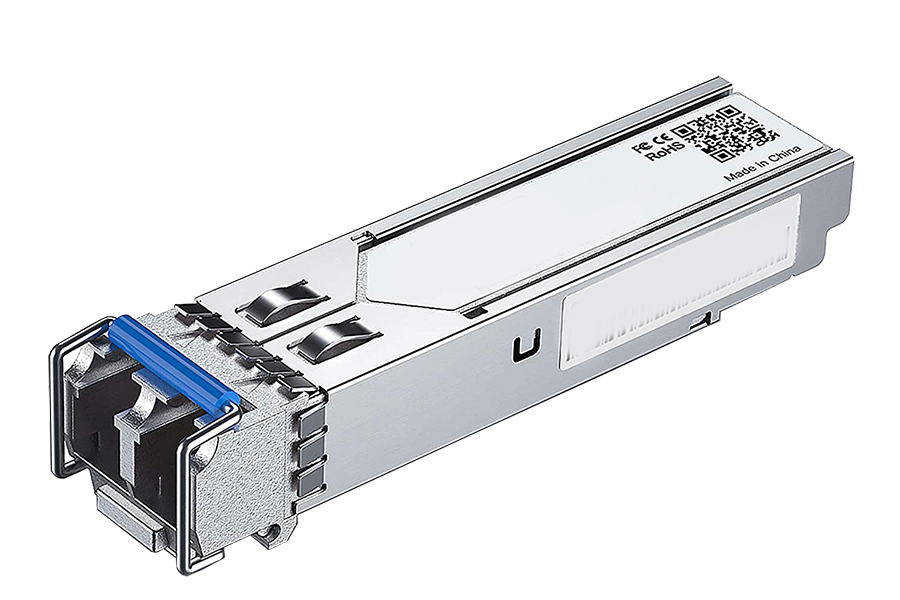

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter (Figure 1) links your switches and routers to the network. The hot-swappable input/output device plugs into a Gigabit Ethernet port or slot. Optical and copper models can be used on a wide variety of Cisco products and intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

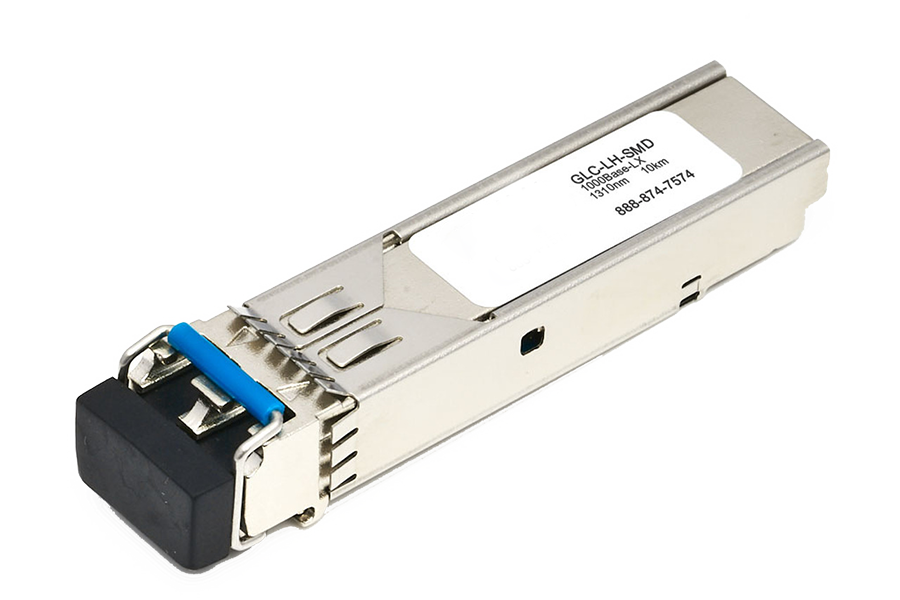

1000BASE-LX/LH SFP for both multimode and single-mode fibers
The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable. For details on this implementation, refer to https://www.cisco.com/en/US/prod/collateral/modules/ps5455/product_bulletin_c25-530836.html.
Cabling and connectors
Connectors include the following:
Note: Only connections with patch cords with PC or UPC connectors are supported. Patch cords with APC connectors are not supported. All cables and cable assemblies used must be compliant with the standards specified in the standards section.
