Category : Data Center Networking

Cisco SFP-10G-SR-S= 10GBASE-SR SFP+ Transceiver

10GBASE-SR SFP Module, Enterprise-Class

Brand : Cisco

Model : SFP-10G-SR-S=

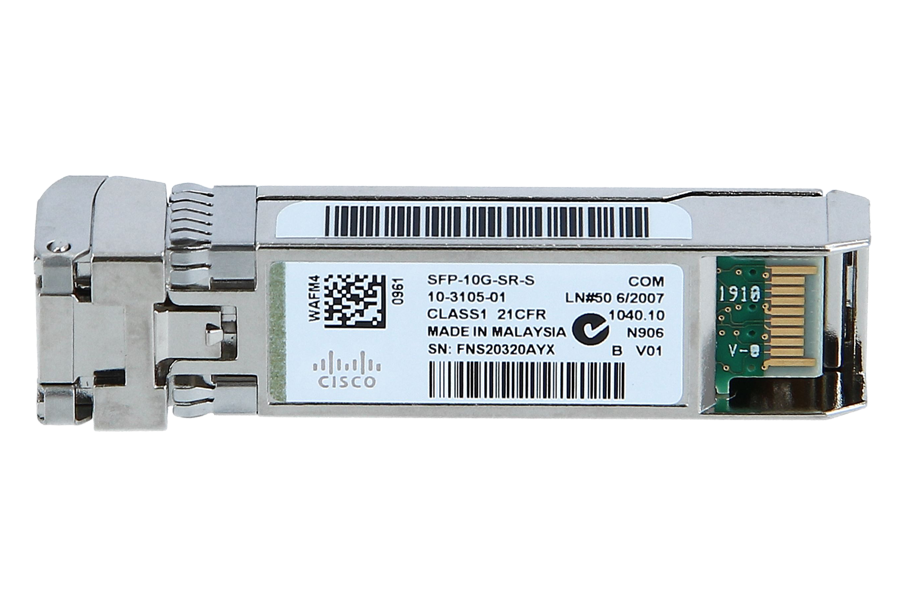

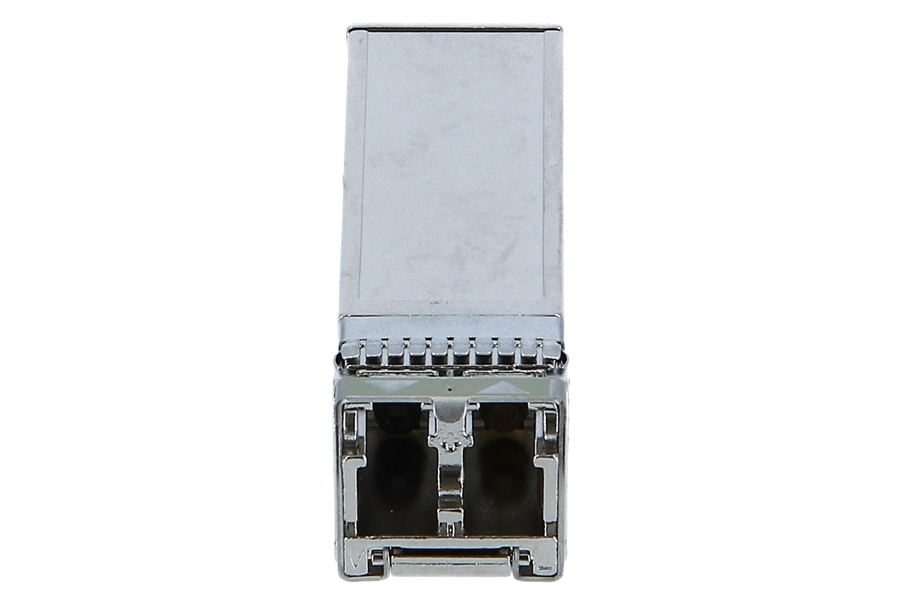

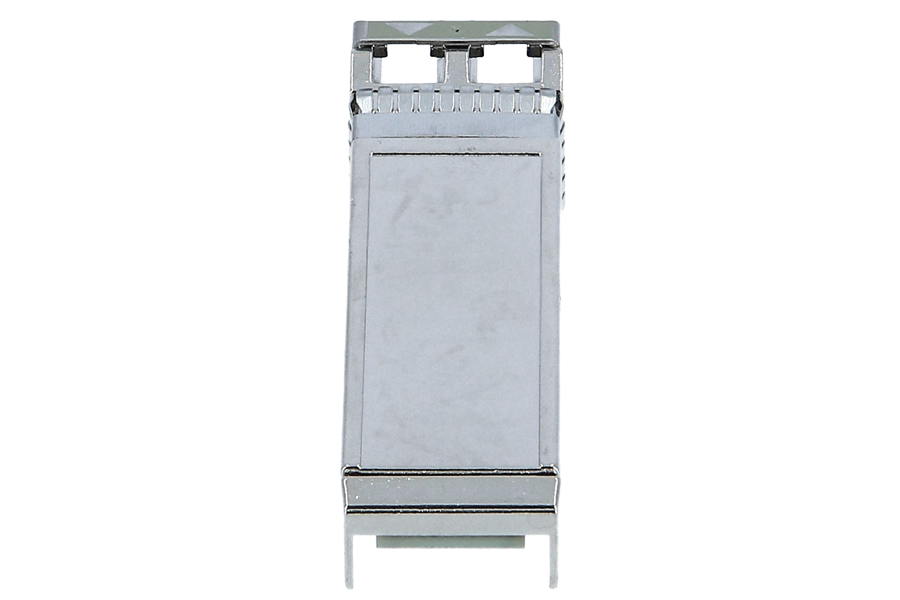

The Cisco® 10GBASE SFP+ modules (Figure 1) give you a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Features and benefits

Cisco SFP+ modules offer the following features and benefits.

Industry’s smallest 10G form factor for greatest density per chassis
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing)
Supports “pay-as-you-populate” model for investment protection and ease of technology migration
Digital optical monitoring capability for strong diagnostic capabilities
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Cisco quality Identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco

The Cisco 10GBASE-SR module supports a link length of 26 meters on standard Fiber Distributed Data Interface (FDDI)-grade Multimode Fiber (MMF). Using 2000 MHz*km MMF (OM3), up to 300-meter link lengths are possible. Using 4700 MHz*km MMF (OM4), up to 400 meter link lengths are possible. SFP-10G-SR-S does not support FCoE.

SFP+ port cabling specifications

Wavelength (nm) : 850
Cable Type : MMF
Core Size (Microns) :
- 62.5
- 62.5
- 50.0
- 50.0
- 50.0
- 50.0
Modal Bandwidth (MHz*km)*** :
- 160 (FDDI)
- 200 (OM1)
- 400
- 500 (OM2)
- 2000 (OM3)
- 4700 (OM4)
Cable Distance* :
- 26m
- 33m
- 66m
- 82m
- 300m
- 400m
Type : 10GBASE-SR 850nm MMF
Transmit Power (dBm)* :
- Maximum : -1.2**
- Minimum : -7.3
Receive Power (dBm)* :
- Maximum : -1.0
- Minimum : -9.9
Transmit and Receive Wavelength (nm) : 840 to 860
SFP+ optical modules color code : Beige
Power Consumption (W) : 1
Operating Temperature Range : COM

Dimensions

Dimensions (H x W x D): 8.5 x 13.4 x 56.5mm. Cisco SFP+ connectors typically weigh 75 grams or less.

Environmental Conditions and Power Requirements

Operating temperature range:
- Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
- Extended temperature range (EXT): -5 to 85°C (23 to 185°F)
- Industrial temperature range (IND): -40 to 85°C (-40 to 185°F)
- Storage temperature range: -40 to 85°C (-40 to 185°F)

Warranty

Standard warranty: 1 year
Extended warranty (optional): Cisco SFP+ modules can be covered in a Cisco SMARTnet® Service support contract for the Cisco switch or router chassis

Regulatory and standards compliance

Standards:
- GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
- GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
- GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
- IEEE 802.3: 10-Gigabit Ethernet
- ITU-T G.709: Interfaces for the Optical Transport Network
- ITU-T G.975: GFEC
- ITU-T G.975.1: EFEC
- SFP+ MSA SFF-8431 (Optical Modules, Active Optical Cables, and Passive Twinax cables)
- SFP+ MSA SFF-8461 (Active Twinax cables)
Safety:
- Laser Class 1 21CFR-1040 LN#50 7/2001
- Laser Class 1 IEC60825-1
- Cable jacket of SFP+ copper modules is UL #E116441 Compliant
- All length SFP+ copper cables are ELV and RoHS Compliant
