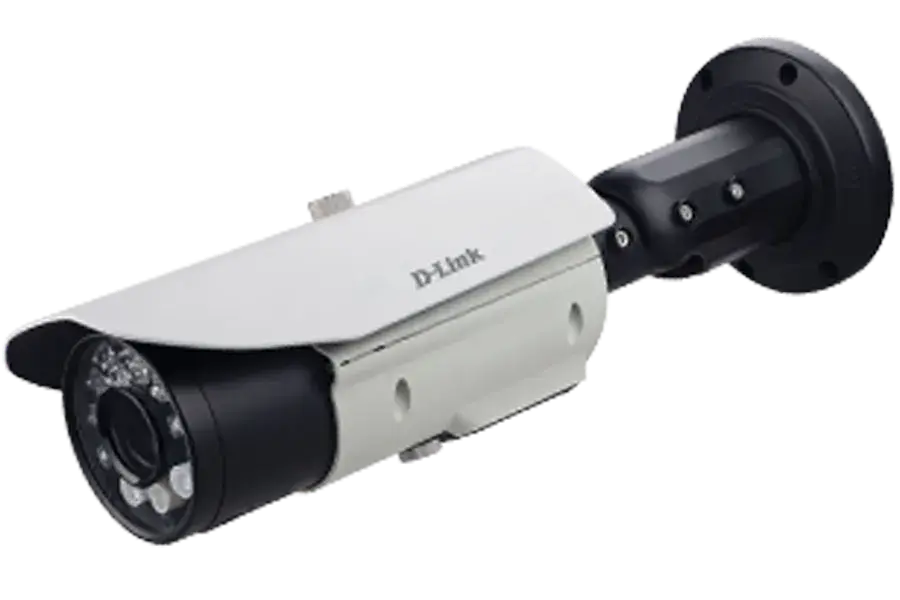

D-Link 2 MP Full HD Day & Night Varifocal Enhanced Outdoor Bullet Network Camera DCS-F4722E

DCS-FCA624 : Wall MountDCS-FCA633B : Junction Box"/>

Brand : D-Link

Model : DCS-F4722E

Camera Specification

Camera Hardware Profile
- 1 /2.8" 2 MP Progressive Scan CMOS
- Focal Length: motorized varifocal lens 2.7-12mm
- Up to 40 meter IR illumination distance
- Aperture : F2.2
- Built-in Infrared-Cut Removable (ICR) Filter module, Smart IR support
- Angle of view
- (H) 95° ~ 35°
- (V) 48° ~ 20°
- Minimum illumination: Color 0.01Lux; IR ON 0 Lux
- Shutter Speed: 1/5-1/20000
- Minimum object distance : 0.3m
- Digital zoom : 10x
Camera Housing : IP66 compliant weatherproof housing
Image Features
- Configurable image size, quality, frame rate, VBR/CBR (500kbps ~ 12 Mbps)
- Configurable privacy mask zones : Total zones 4
- Time stamp and text overlays
- Configurable Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance, Rotate mode, Corridor mode
- Customized text overlay
- Digital Noise reduction with 2D and 3D technology
- No. of zones configurable for ROI : 8
- Image Enhancement with WDR, HLC
Video Compression
- Simultaneous H.264/H.265 (BP/MP/HP)/MJPEGorfmat compression
- JPEG for still images
- H.264/H.265, MJPEG
Video Resolution
- Main Stream:1920x1080/1280x960/1280x720
- Second Stream:D1 to QVGA
Frame Rate : Selectable upto 30 FPS
Vandal Proof (IK-10) : Yes
External Device Interfaces
- 10/100 BASET- X Ethernet port with PoE
- 1ch Audio In & 1ch Audio Out
- 1ch Alarm In&1ch Alarm Out
- BNC Output
- Micro SD/ SDHC/ SDXC slot, Max 128GB
- RS-485

Network

Network Protocols
- IPv6
- SMTP client
- IPv4
- HTTP/HTTPS
- TCP/IP
- PPPoE
- UDP
- UPnP
- ICMP
- RTP/RTSP
- DHCP client
- Multicast
- NTP client
- ONVIF compliant
- DNS client
- DDNS client
Security
- Administrator and user group protection
- HTTP and RTSP authentication
- Remote client access control
- HTTPS encryption for web access hardware watchdog

System Management

System Requirements for Web Interface : IE 11, Chrome, Firefox
Event Management :
- Motion detection, Video Loss, Port Alarm
- Event notification and uploading of snapshots via e-mail
- Alerts to SMTP client
- Multiple event notifications only on mails
Remote Management :
- Configuration interface accessible via web browser
- Take snapshots
OS and Mobile Support :
- Windows 7/8/XP/Vista/2000 and higher
- Android
DCMS System Requirement :
- Operating System: 32 Bits - MSWindows XP pro SP3/Visa SPI/Win 7 SPI/Win10 64 bits - Win 7 SPI/Win Server 2008 R2
DCMS Software Function : Control and manage up to 64 channels

General

Order Information

DCS-F4722E : 2 MP Full HD Day & Night Varifocal Enhanced Outdoor Bullet Network Camera

Optional Accessory
