Category : HP Transceivers

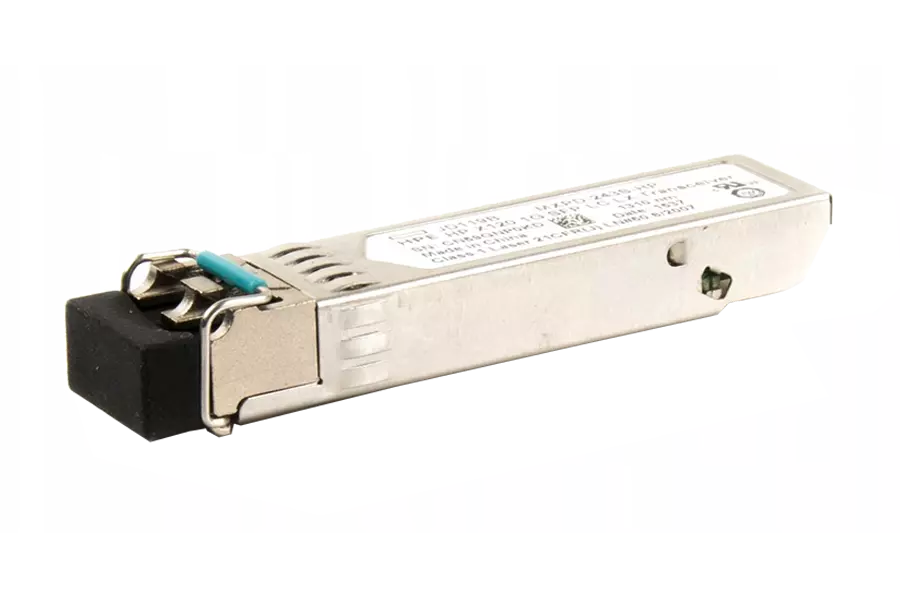

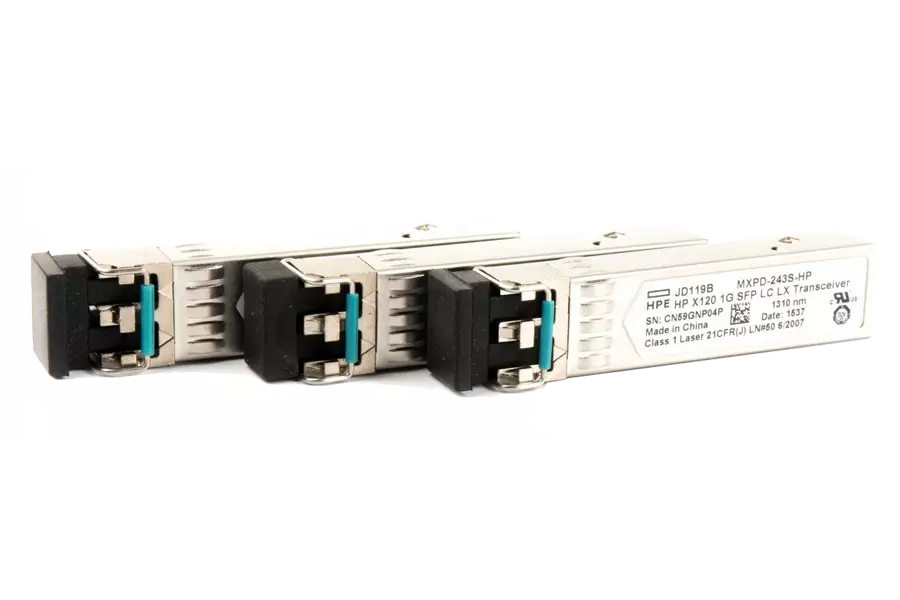

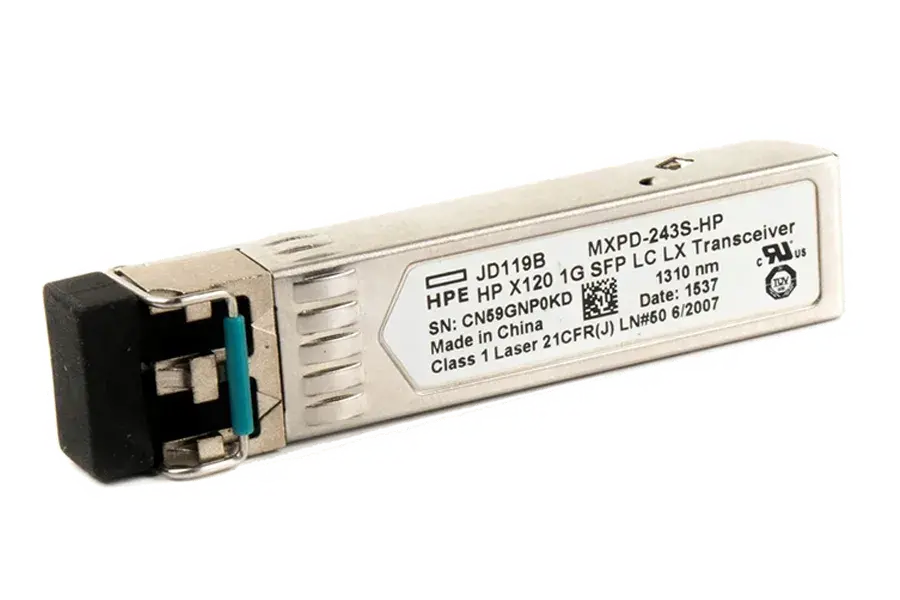

HPE X120 1G SFP LC LX Transceiver

HPE X120 1G SFP LC LX Transceiver

Brand : HP

Model : JD119B

Enquiry Us Contact Now

Key Features

  • 1 x SFP 1000BASE-LX Port
  • LC Connector Type
  • 1300 nm Wavelength
  • Single or Multimode Support
  • 1804' Maximum Distance (Multimode)
  • 6.2 mi Maximum Distance (Singlemode)
  • Up to 1.0 W Power Consumption

With a single SFP 1000BASE-LX port, the X120 1G SFP LC LX Transceiver from HP is capable of emitting signals at distances of up to 1804' in a multimode configuration and up to 6.2 miles in a single mode configuration. Additionally, this transceiver supports a 1300 nm wavelength and has a maximum power consumption of 1.0 W.

  • LC connector type
  • Supports either Single mode or multimode cable type
  • Supports up to 1804' maximum multimode distance
  • Supports up to 6.2 mi maximum single mode distance

Specifications

  • Type : HP X120 1G SFP LC LX Transceiver
  • Ports : 1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)
  • Connector type : LC
  • Wavelength : 1300 nm
  • Cabling distance (maximum) :
  • 550m for Multimode
  • 10km for Singlemode
  • Cable type : Either single mode or multimode
  • Fiber type : Both
  • Power consumption typical : 0.8 W
  • Power consumption maximum : 1.0 W
  • Dimensions : 2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
  • Weight : 0.04 lb.
