Category : Synology Storage

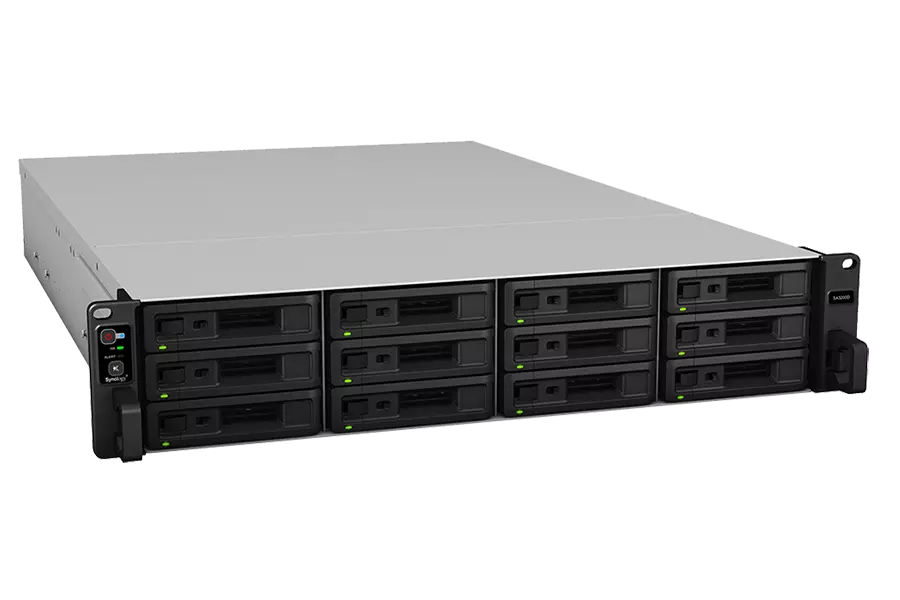

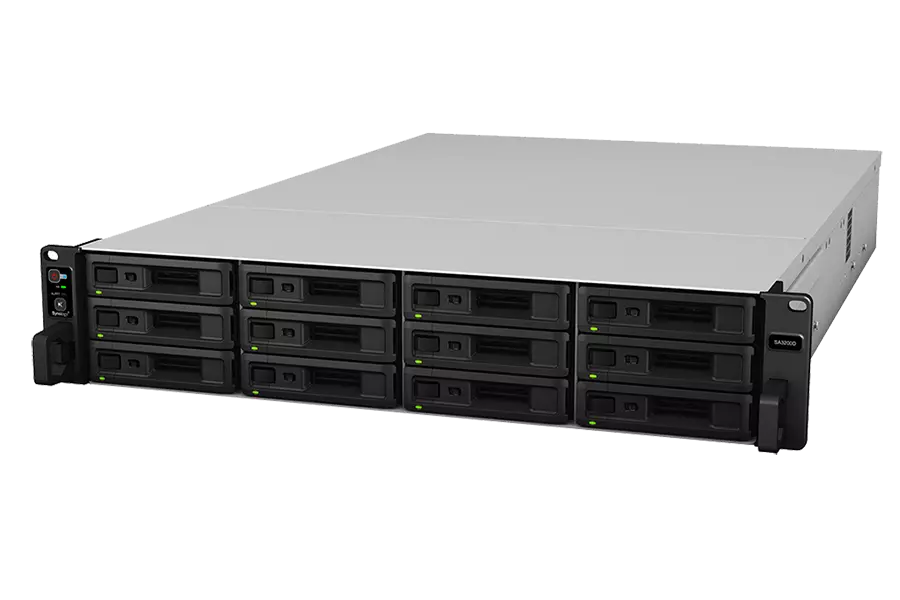

Synology SA3200D Network Storage

SA3200D Give your business the data protection and service availability it needs

Brand : Synology

Model : SA3200D Network Storage

Features

Maximizing availability has never been this easy

Simplify and centralize your data management infrastructure with Synology SA3200D. Storage controller redundancy powered by Synology High Availability automatically minimizes downtime to under a minute1, delivering outstanding cost effectiveness in just a 2U footprint.

High Availability : Dual storage controllers
Cost-effective : Shared storage design
Effortless : Automatic system-level protection
Scalable : Up to 36 drives for 576 TB2

Scales up with you

SA3200D supports two RXD1219sas expansion units for up to 36 SAS 3.5”/2.5” bays. Scale up to 576 TB2 without downtime to quickly meet new demands.

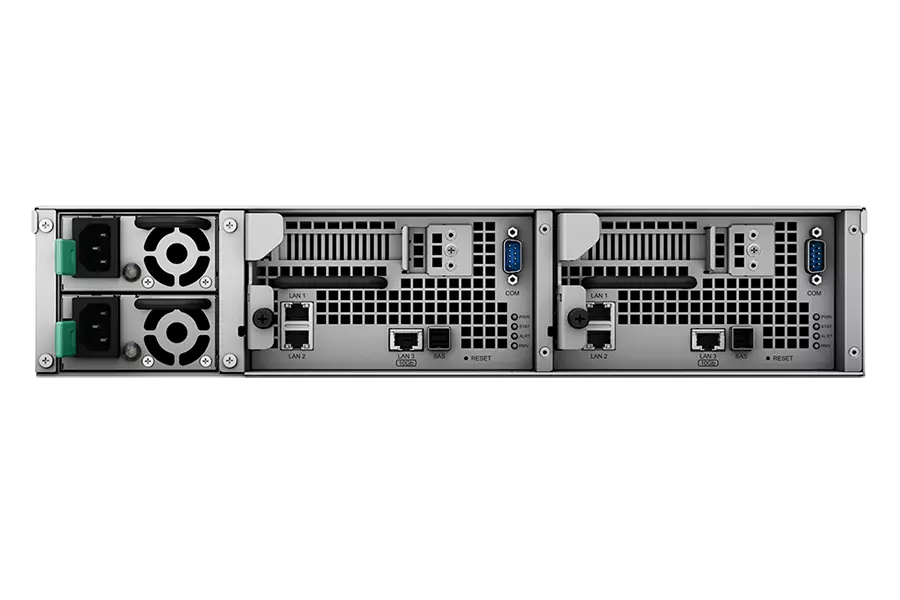

Redundant power supply : Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.
Active-passive controller modules : Automatic system failover to the secondary controller, maximizing service uptime.
PCIe 3.0 slot : Supports 10GbE/25GbE network interface cards for higher throughput.
2 x 1GbE & 1 x 10GbE : Cost-effective RJ45 networking interface options built-in.
Mini-SAS HD port : Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.
Processor : The Intel® Xeon® D-1521 processor on each controller provides enterprise-class reliability, availability, and serviceability.
4 x DDR4 memory slots : 8 GB ECC UDIMM, expandable up to 64 GB for more demanding workloads.
Modularized cooling : Dual fan modules per controller allow for easy maintenance and replacement.
SATA DOM : Operating system files are isolated from the stored data, providing higher throughput and stability.
Non-Transparent Bridge (NTB) : Faster and lower-latency connectivity between controllers.

Ultimate Backup Solution

SA3200D integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

Active Backup for Business : Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup : Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Synology Drive : Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
Active Backup for Microsoft 365 / G Suite : Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Fully certified storage virtualization solutions

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Virtual Machine Manager

Virtual Machine Manager enables you to test new software in sandboxes, isolate your customers' machines, and increase the flexibility of your server. You can easily run Windows, Linux, and Virtual DSM on your Synology NAS by just a few steps.

Snapshots for virtual machines : Perfectly clone and restore a virtual machine within seconds.
Multi-tenant environment : Create multiple isolated virtual machines for subsidiary business units or departments.

Specifications

Controller

Number of Controller Module : 2

CPU

CPU Model : Intel Xeon D-1521
CPU Quantity : 1 (per controller)
CPU Architecture : 64-bit
CPU Frequency : 4-core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI) : Yes

Memory

System Memory : 8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-installed : 8 GB (8 GB x 1) (per controller)
Total Memory Slots : 4 (per controller)
Maximum Memory Capacity : 64 GB (16 GB x 4) (per controller)
Notes :

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For more information on the recommended memory configurations, visit here.
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

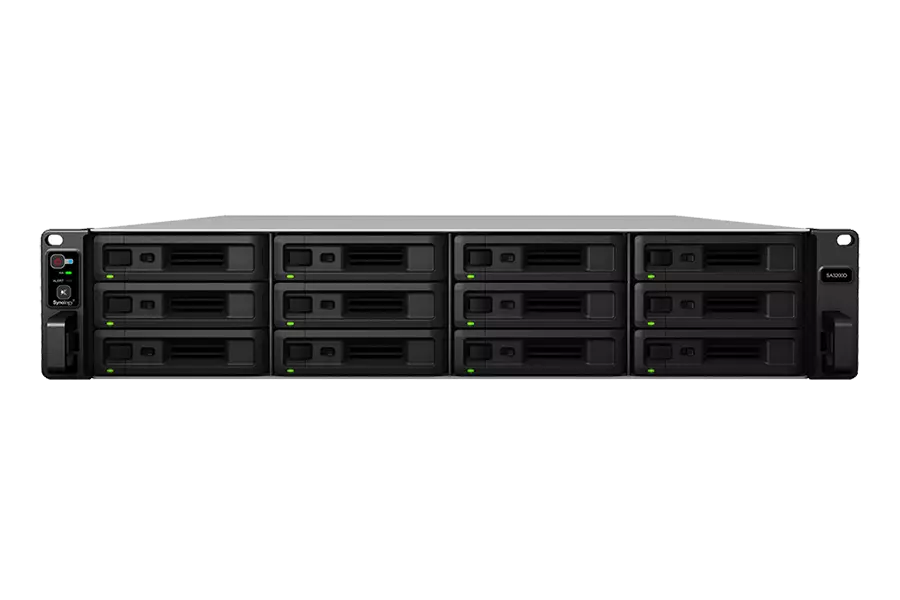

Drive Bays : 12
Maximum Drive Bays with Expansion Unit : 36 (RXD1219sas x 2)
Compatible Drive Type* (See all supported drives) :
- 3.5" SAS HDD
- 2.5" SAS HDD
- 2.5" SAS SSD
Maximum Single Volume Size* :
- 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
- 108 TB
Hot Swappable Drive : Yes
Notes :
- "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
- Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).

External Ports

RJ-45 1GbE LAN Port : 2 (with Link Aggregation / Failover support) (per controller)
RJ-45 10GbE LAN Port : 1 (per controller)
Expansion Port : 1

PCIe

PCIe Expansion : 1 x Gen3 x8 slot (x8 link) (per controller)

File System

Internal Drives :
- Btrfs
- EXT4

Appearance

Form Factor (RU) : 2U
Size (Height x Width x Depth) : 88 mm x 482 mm x 724 mm
Weight : 19.7 kg
Rack Installation Support* : 4-post 19" rack (Synology Rail Kit - RKS1317)
Notes : The rail kit is sold separately

Others

System Fan : 60 mm x 60 mm x 2 pcs
Fan Speed Mode :
- Full-Speed Mode
- Cool Mode
- Quiet Mode
Easy Replacement System Fan : Yes
Power Recovery : Yes
Noise Level* : 51.3 dB(A)
Power Supply Unit / Adapter : 500 W
Redundant Power Supply : Yes
AC Input Power Voltage : 100 V to 240 V AC
Power Frequency : 50/60 Hz, Single Phase
Power Consumption* :
- 417.48 W (Access)
- 274.38 W (HDD Hibernation)
British Thermal Unit :
- 1425.45 BTU/hr (Access)
- 936.85 BTU/hr (HDD Hibernation)
Notes :
- Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75?C; Humidity: 58.2-61.8%.
- Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s).

Temperature

Operating Temperature : 0°C to 35°C (32°F to 95°F)
Storage Temperature : -20°C to 60°C (-5°F to 140°F)
Relative Humidity : 5% to 95% RH

Certification

FCC
CE
BSMI
EAC
CCC
VCCI
RCM

Warranty

5 Years
Notes : The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1

Optional Accessories

DDR4 ECC UDIMM: D4EC-2666-8G/D4EC-2666-16G
Expansion Units: RXD1219sas
10GbE Network Interface Card: E10G18-T2/E10G18-T1/E10G17-F2
Rail Kit Sliding: RKS1317
VisualStation: VS960HD/VS360HD
Surveillance Device License Pack
Notes : All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

DSM Specifications

Storage Management

Maximum Internal Volume Number : 64
Maximum iSCSI Target Number : 256
Maximum iSCSI LUN : 512
iSCSI LUN Clone/Snapshot, Windows ODX :
SSD Read / Write Cache (White Paper) :
SSD TRIM :
RAID Group :
Supported RAID Type :
- RAID F1
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
RAID Migration :
- Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
Volume Expansion with Larger HDDs :
- RAID F1
- RAID 1
- RAID 5
- RAID 6
- RAID 10
Volume Expansion by Adding a HDD :
- RAID F1
- JBOD
- RAID 5
- RAID 6
Global Hot Spare Supported RAID Type :
- RAID F1
- RAID 1
- RAID 5
- RAID 6
- RAID 10

File Services

File Protocol : CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections : 1,200
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion) : 6,000
Windows Access Control List (ACL) Integration : Yes
NFS Kerberos Authentication :
Notes :
- Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
- During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.

Account & Shared Folder

Maximum Local User Accounts : 16,000
Maximum Local Groups : 512
Maximum Shared Folder : 512
Maximum Shared Folder Sync Tasks : 32

High Availability

Synology High Availability : Yes

Log Center

Syslog Events per Second : 3,000

Virtualization

VMware vSphere 6 with VAAI :
Windows Server 2016 :
Windows Server 2019 :
Citrix Ready :
OpenStack :

General Specifications

Networking Protocols : SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers :
- Google Chrome
- Firefox
- Microsoft Edge
- Internet Explorer 10 onwards
- Safari 10 onwards
- Safari (iOS 10 onwards)
- Google Chrome (Android 6.0 onwards)
Supported Language : English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, ???????, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, ?eský, ???????, ???, ???, ????, ????
