Category : Network Racks

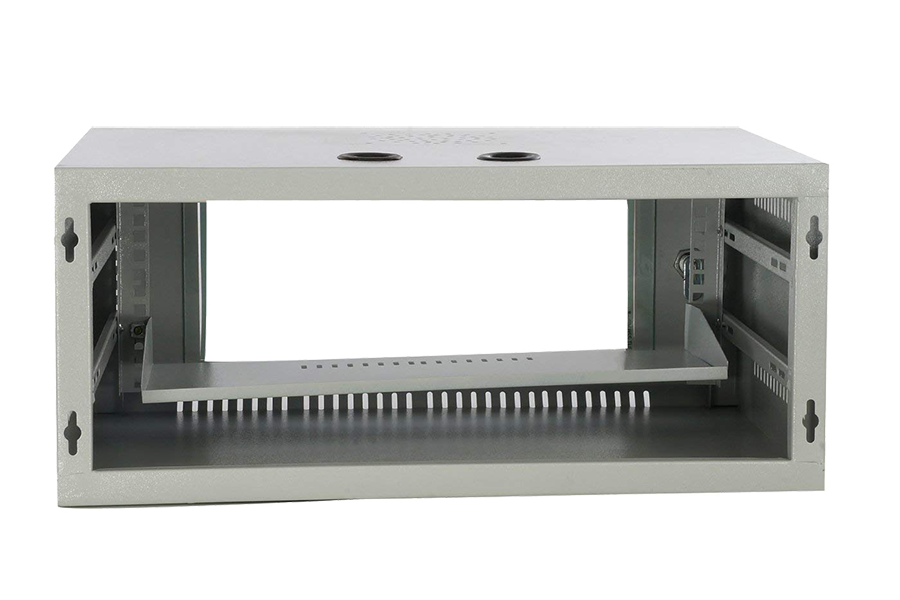

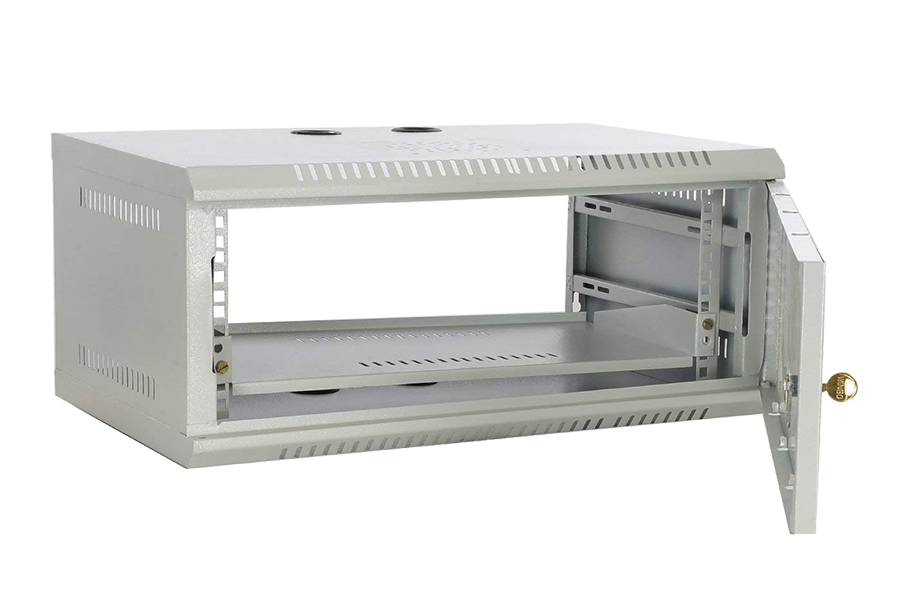

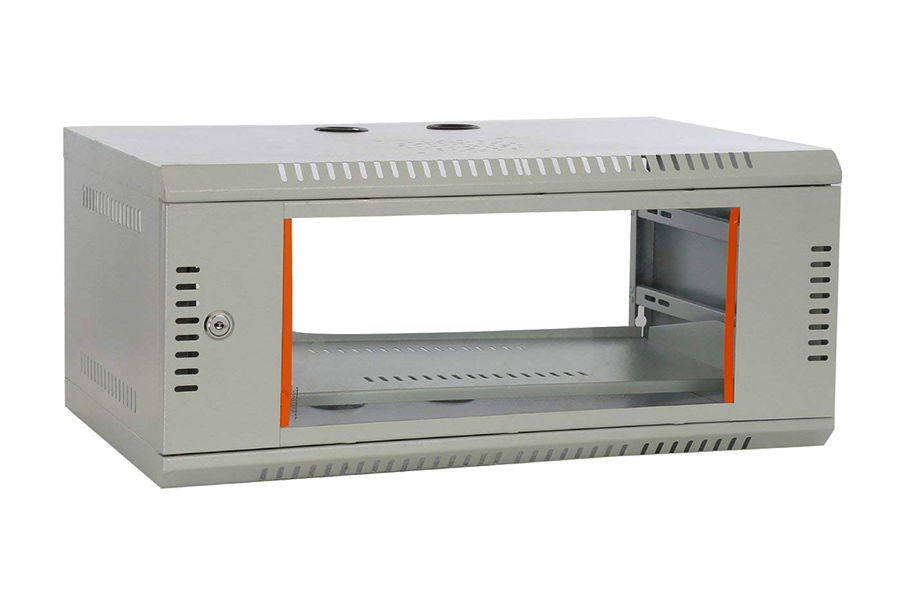

TATA Trynox 4U/550X400 Wall Mount Networking/DVR Rack

TATA Trynox Steel Frame Wall Mount Rack – TN-WM-4-5.5-4

Brand : TATA

Model : TN-WM-4-5.5-4

Enquiry Us Contact Now

General Features

  • Enclosures are made of High Quality 0.8/1.5 mm CRCA Sheets from TATA STEELIUM
  • SKD design and can be easily assembled at the user site
  • Wall Mount Enclosures are made primarily of three colours i.e., RAL 7035, RAL 9005 and RAL 5018. However, Enclosures with different colour combinations can also be made available
  • Necessary accessories for the complete installation of the Enclosures form part of the total system
  • Pick Your Accessories
    • Cable Manager
    • Cantilever Tray
    • Cooling Fan
    • Power Distribution Unit (PDU)
    • Mounting Hardware
    • Rear cover
  • The Flat Packed Enclosures are made up of
    • 1 Top Cover and 1 bottom-cover
    • 2 Slide Panels with built in engineered ventilation
    • Front door with 4 inches Toughened Glass provided with CAM Lock for safe custody or access control
  • Salient Features Unique – “A tomorrow brought in today”
    • A Uni-Bolt arrangement system Provides ON Site QUICK Assembly Deskilled solution for our SKD Version
    • 'Carry On' - Fully Environment Friendly Pack facilitates Logistics & Service team
  • Mechanical
    • Safe to Handle
    • Does not have any pinch point/sharp edge which may cause serious injury during handling or fitment
    • Full-depth mounting variations
    • Adequate factor of safety and built-in fail-safe features
  • Cabling
    • Facilitates top & Bottom Cable Entry
    • Adequate leeway for cable routing inside the enclosure
    • Extra storage space for surplus cable windings
    • Provision for cable ties and cable clips inside enclosure
  • Cooling
    • Optimized fan position and spacing for better cooling
    • Adequate air flow with provision for forced ventilation
    • Adequate space for finger guard and air filters

    Available Range

    Range of Wall mount are defined by the capacity, Width and Depth.

    • Capacity(H)  : 04 U
    • Width(W) : 550
    • Depth(D) : 450

    Technical Characteristics

    Certifications

    • Degrees of Ingress Protection (IP 20), in accordance with IEC 60529
    • Degree of Impact Protection (IK 08), according to IEC 62262
    • Corrosion Resistance through Salt Spray test according to ISO 9227
    • Weight carrying capacity 60 Kg ( Certified through In-house Tests )
    • Process validations through NABL accredited Laboratory ensures a Compliant and Robust Product

    Powder Coating

    • Fine texture finish achieved through a combination of Epoxy and PU powder
    • Powder Coating Booth is designed to prevent excessive powder loss to comply with Environment regulations
    • Powder Coating Booth deploys modern Recycle & Auto Reciprocator system to deliver required
    • Dry Film Thickness. Standard being set for 60-80 Microns for our product range

    The powder coating ensures the following

    • 60 – 80 Micron powder deposit
    • Fine Texture Finish for Aesthetic appearance
    • High Scratch resistance against any sharp object

    Electrical Continuity of the conductive parts

    • Provision of earthing Stud facilitates on-site earthing
    • DIN standard earthing solutions are available on request

    Technical Characteristics

    • ISO 9000 /14000 / ROHS compliance : ISO 9000 /14000 / ROHS
    • Raw Material : Cold Rolled Sheet Steel, Glass, Synthetic Rubber(Knockout Edge Protector/Cover), Epoxy Hybrid Powder, Hardware
    • Process and Chemical details ( Eco friendly parameters) : ISO and RoHS Certificates for Purchased Items
    • Powder Coating : As per Industry Norms
    • Powder details : RoHS Certified
    • Raw Material for chemicals and Powders from reputed manufacturers : Part of Vendor Audits
    • Shearing : Turret Punching Machine
    • Bending : Press Brake Operation
    • Welding : CO2 MIG
    • Multi Stage Inspection process Inspection : RM Inspection, WIP Inspection, Final
    • Packing and Logistics : 5 Ply packing of appropriate GSM with Separators inside

    General Arrangement

    • Average Weight (Kgs) : 8.3
    • Capacity U : 4U
    • Functional Width (Inch) : 19”
    • Overall Size (+ 1) (mm)
      • Height : 262
      • Width : 450
      • Depth : 450
    • Usable Depth (+ 1)
      • Rack Mount : 388
    • Fan Qty : 1
    • Rear Spacing
      • Rear Gap (mm) : 20
    • Storage Volume
      • Length X Width X Height (mm) : 498 X 448 X 35
